By Gold Note

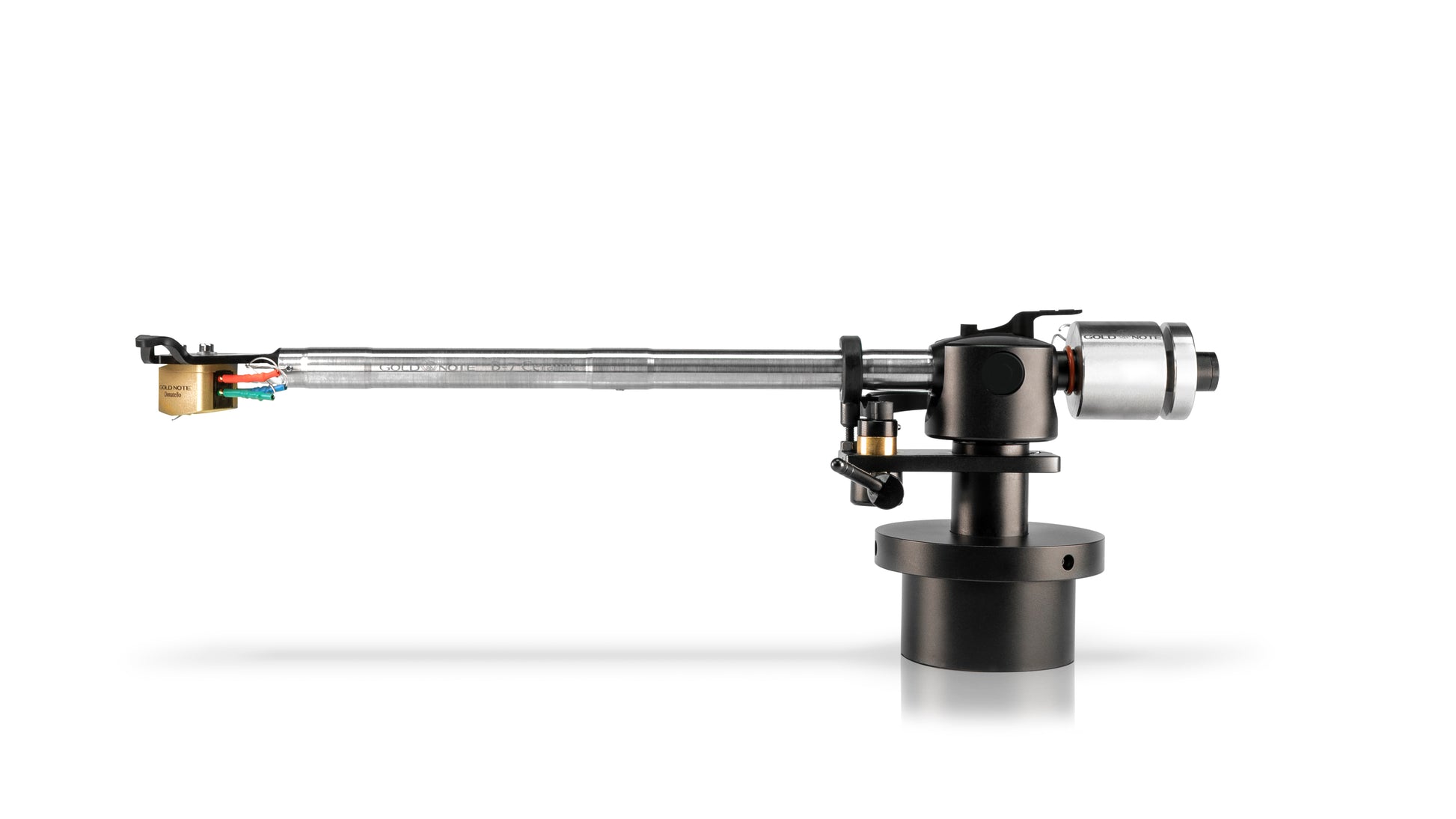

Gold Note - B-7 - Ceramic Tonearm

Regular price $2,399.00
Regular price Sale price $2,399.00
Shipping calculated at checkout.
Regular price $2,399.00
Regular price Sale price $2,399.00

Design, superior materials and extreme functionality come together to give life to Gold Note’s premium arm.

A welldesigned tonearm should sound its best in any situation while always maintaining simplicity and effectiveness in its use. If the above conditions are combined with excellent materials and an elegant look, the B7 Ceramic is obtained. This tonearm, which is produced in Italy with the utmost care, ensures that the stylus has perfect adherence to the vinyl groove, bringing out every single detail of a musical event.

Inside the B7 Ceramic, there are 4 treated and individually sealed micro ball bearings made with high-precision ceramic balls produced to Gold Note‘s specifications in Germany by GRW.

This process is crucial to achieve the lowest possible friction and cancel out movement noisso that every musicanuanccan be extracted to the fullest. Thanks to the 23mm diameter spindle (common standard for tonearms) and an effective length of 242mm, B-7 Ceramic can be easily installein any quality turntable.
The microceramic bearings of the vertical movement of the arm, light and with very low friction, are inserted on stainless steel pins designed to achieve superior performance.
The bearings of the horizontal plane, always in ceramic, are directly inserted into the central pivot pin of the arm made in a single piece of turned aluminium. Thanks to its double counterweight, B-7 Ceramic can mount a wide variety of heads (up to 15 gramin weight).
The quality of the materials used – such as Titanium, aluminium alloy 6000 and ceramic bearings – are indicative of
the construction carwith which wmake every project and make B-7 Ceramic an arm at the state of the art.

TYPE: 9″ Ball Bearing Tonearm

BALL BEARINGS: ceramic ball bearings custom-made by GRW

OVERHANG: 19mm

OFFSET: 24°

ARM WAND: Straight Titanium

DESIGN: 12mm rectified tube 0.6mm with 6 sections different thickness

INSERTING PLINTH SHAFT: 23mm

DYNAMIC EFFECTIVE MASS: 10g

VTF: 0.176N (18g)

VTA: Adjustable on collar

LIFT: Hydraulic

ANTI-SKATING: Wire, 5 positions

AZIMUTH: Adjustable on the head-shell

INTERNAL CABLES: AWG36 Hyper Litz shielded 99,9999% OFC

EXTERNAL CABLES SUPPLIED: 1,5m custom 4 pole DIN/RCA

DIMENSIONS: Effective length: 242 mm

WEIGHT195g (without counterweight)
