Enclosure alignment
4-way bass reflex / acoustic suspension
Driver compliment

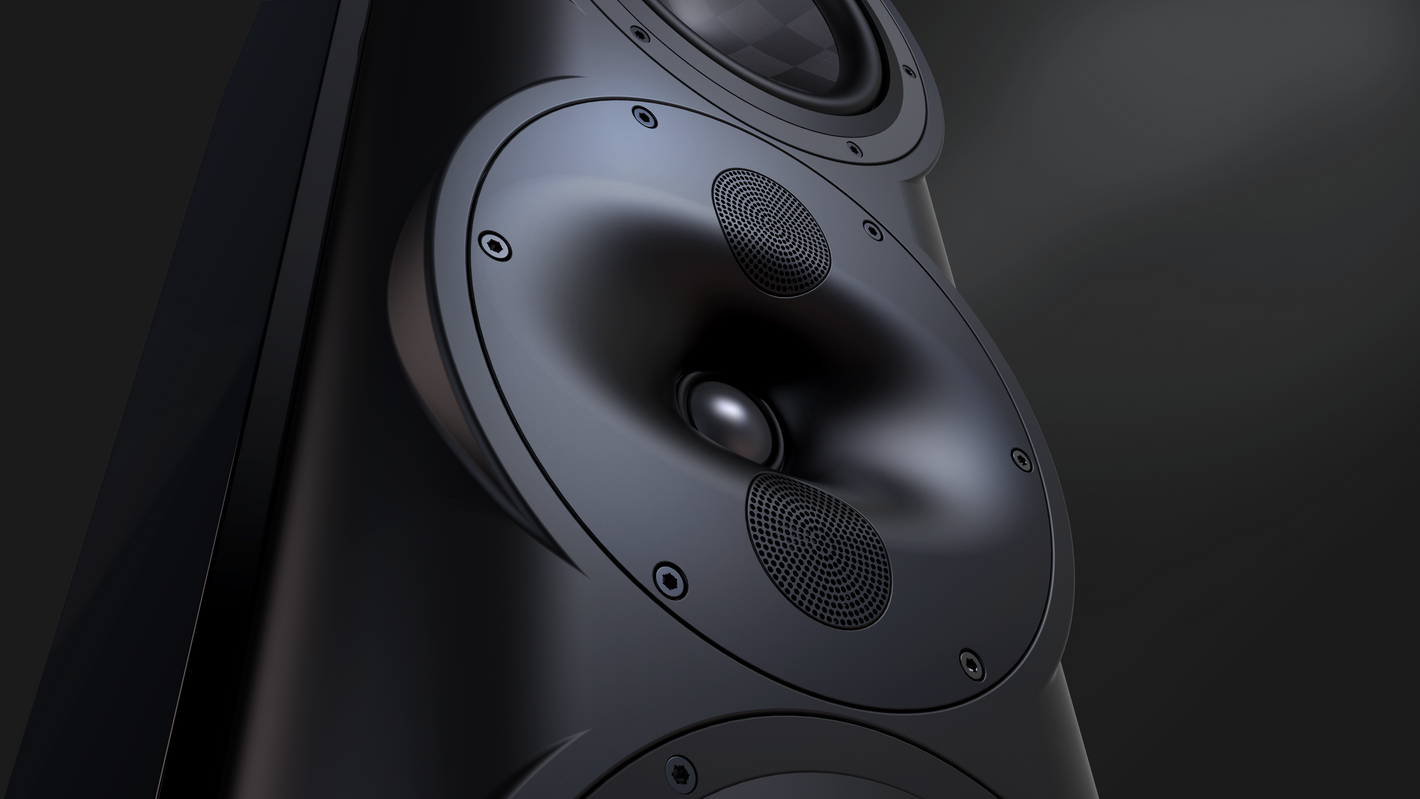

DPC-array:26mm(3) Silk dome
Woofers:165mm(4) HPF diaphragms
Sensitivity
90.0dB / 2.83v / 1.0m
Impedance
4Ω nominal / 3.1Ω min
Response Linearity
80 - 20kHz +/-1.5dB window
Frequency Response (-10dB)
Bass reflex: 27 - 32kHz
Acoustic suspension: 38 - 32kHz
Typical In Room bass extension
Bass reflex: 19Hz
Acoustic suspension: 30Hz

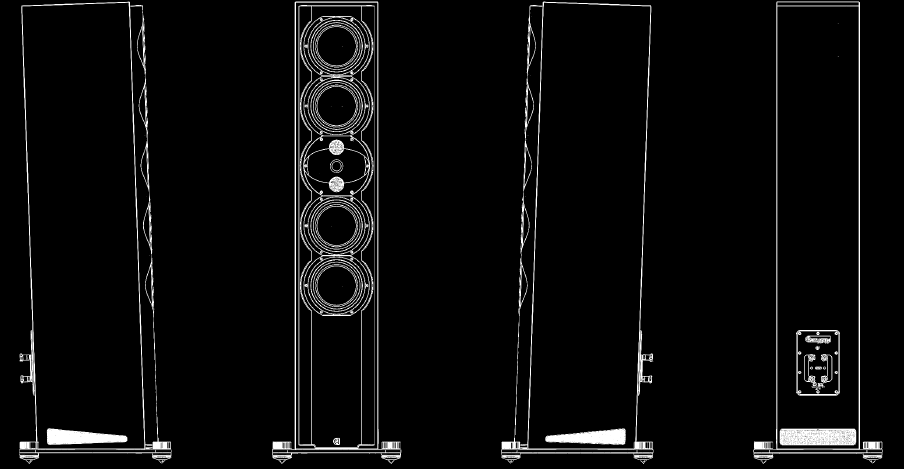

Dimensions (HxWxD)
1268 x 230 x 350mm49.9 x 9.0 x 13.7"
Weight
48.0 kg (105.6 lbs.)
Recommended Amplifier Power
100 - 400W RMS
SPL capability @1m (100-20kHz)
116.0dB peak <3% - 2nd, 3rd Harmonics
Certification
THX Dominus, THX Ultra
